REVO S 1PH
- From 30 up to 800A
- Voltage Range 480V, 600V and 690V
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: SSR Std, 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Zero Crossing, Burst Firing available with analogue input only
General Details
REVO S 1PH
Single phase static relay

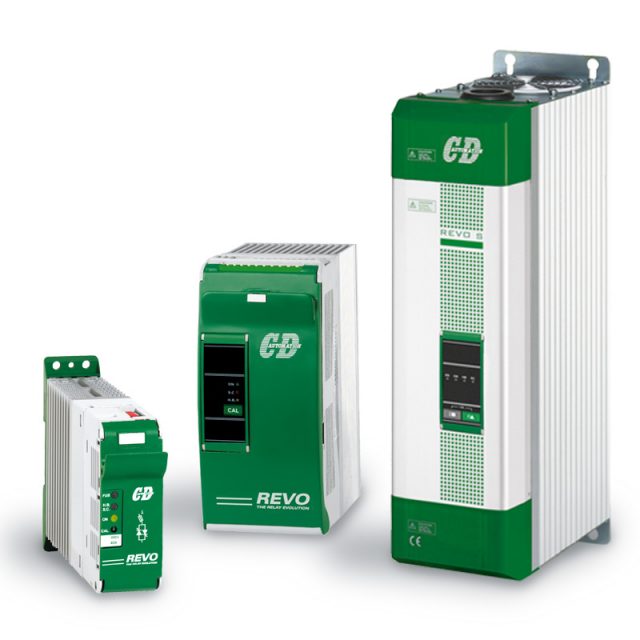

- Revo S 1PH is a single-phase static relay, complete with heatsink, specifically designed to save space and work.
- Current range – 30A, 35A, 40A, 60A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 500A, 600A, 700A, 800A
- Voltage range 480V, 600V and 690V (stating from 60A)
- Fully isolated from the power
- Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
- Logic input signal 4 to 30VDC typical (SSR) plus 4-20mA or 0-10VDC Linear input as an option
- Constant current drain, independent of supply voltage with SSR input
- Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
- Side by side mounting
- Special design Heatsink with high dissipation value
- IP20 protection
- Complies with EMC, EAC, cULus® 508 and cUL® us listed up to 700A as an option.
UL® listed for 800A units. - Can be used in conjunction with REVO-PC to provide multi-zone control
Documentation
REVO S 1PH – Documentation
Catalog
Manuals
User Manual REVO S 1PH from 30 to 40A (M-RS1-30-40)
User Manual REVO S 1PH IFH (Internal fuse) from 30 to 40A (M-RS1-IFH-30-40)
User Manual REVO S 1PH from 60 to 210A (M-RS1-60-210)
User Manual REVO S 1PH from 300 to 800A (M-RS1-300-800)
User Manual REVO S 1PH from 60 to 800A, 690V (M-RS1-60-800-690V)
3D Models
Size: SR3
Size: SR6
Size: SR12
Size: SR15
Size: S11
Size: S12
Size: S15
Code /Size
REVO S 1PH – Order Code
REVO S 1PH – Size & Dimensions
