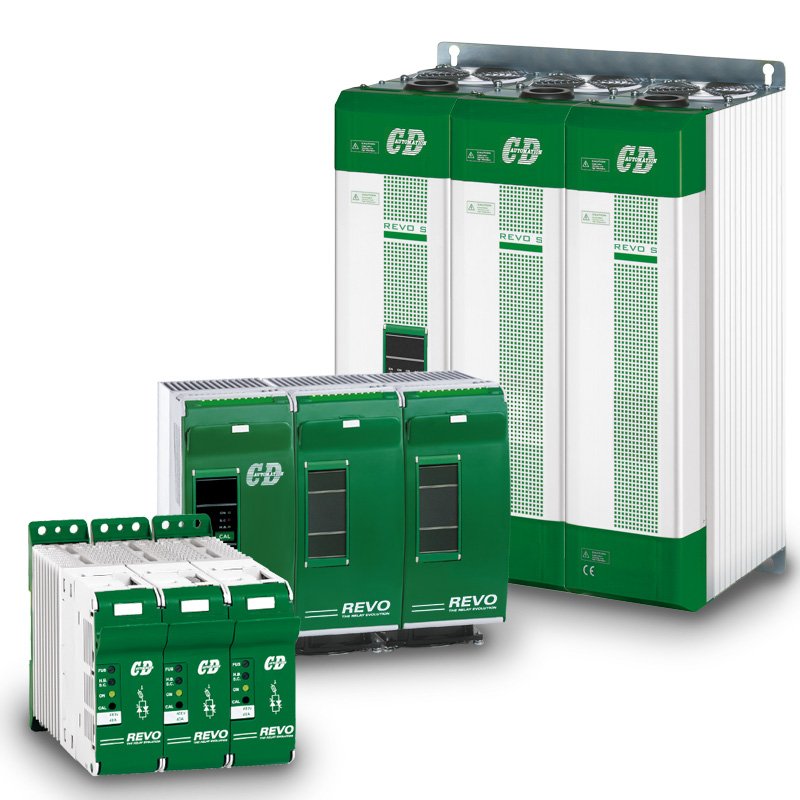

REVO S Family
Static Relays from 3.5 to 800A
• The family includes 1-2-3 phase units
• Nominal voltage 480-600-690V
• Input: SSR or Analog
• Firing: Burst Firing (Fast Zero Crossing)
• Heater Break: Alarm to diagnose the partial or total break of the load or the short circuit of the thyristor
• Can be used in simple applications where communication is not required
• Fuse and fuse holder below 40A
• Fixed fuses from 60 to 800A
• Internal fuses reduce wiring time and cabinet size
• 100 KA Short Circuit Current (SCCR) tested
• CE and cUL approvals
Catalog
REVO S 1PH Single phase static relay
REVO S 1PH
- From 30 up to 800A
- Voltage Range 480V, 600V and 690V
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: SSR Std, 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Zero Crossing, Burst Firing available with analogue input only
REVO S 2PH Three phases static relay
REVO S 2PH
- From 30 up to 800A
- Voltage range 480V, 600V and 690V
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: SSR Std, 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Zero Crossing, Burst Firing available with analogue input only
REVO S 3PH Three phases static relay
REVO S 3PH
- From 30 up to 800A
- Voltage Range 480V, 600V and 690V
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: SSR Std, 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Zero Crossing, Burst Firing available with analogue input only
REVO SSR Long Life Solid State Relay
REVO SSR Long Life Solid State Relay
- Range: 0:62; 0:74; 0:90
- Max. voltage 480V or 600Vac as option
- Load type: Resistance
- Input: SSR
- Firing mode: Zero Crossing
REVO SSR ANALOG | 0:10V & 4:20mA Input SSR
REVO SSR ANALOG | 0:10V & 4:20mA Input SSR
- Rating 0:62; 0:74 and 0:90
- Max. voltage 480V or 600Vac as option
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Burst Firing
REVO Sx | Multiple Low Power Solid State Relay
REVO Sx - Multiple Low Power Solid State Relay
- From 3.5 to 7A
- Max. voltage 240V or 480V AC as option
- From 50 to 90A
- Max. voltage 480V or 600V AC
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: SSR Std
- Firing mode: Zero Crossing
