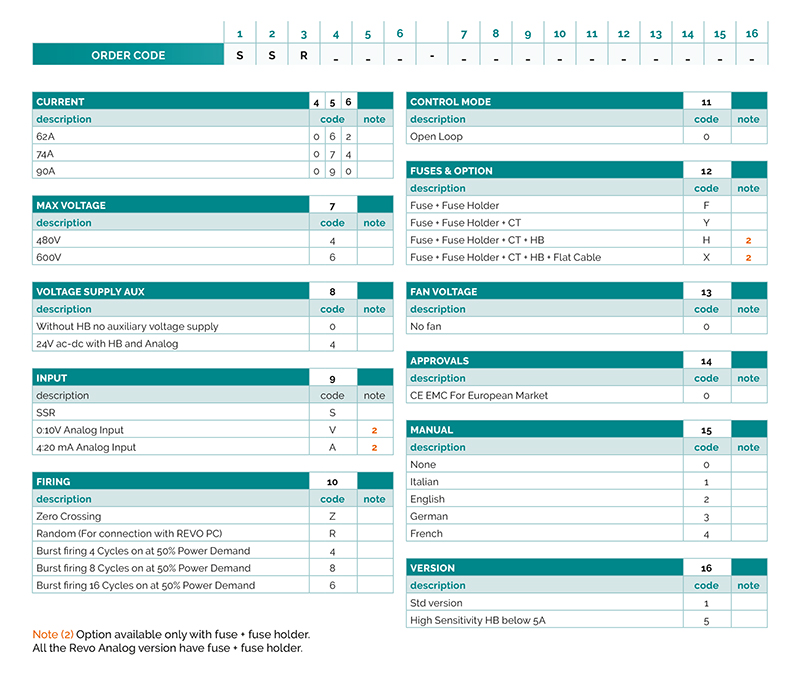

- Rating 0:62; 0:74 and 0:90
- Max. voltage 480V or 600V AC as option
- Load type: Resistance, IR Lamp long and medium waveform
- Inputs: 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Burst Firing
General Details

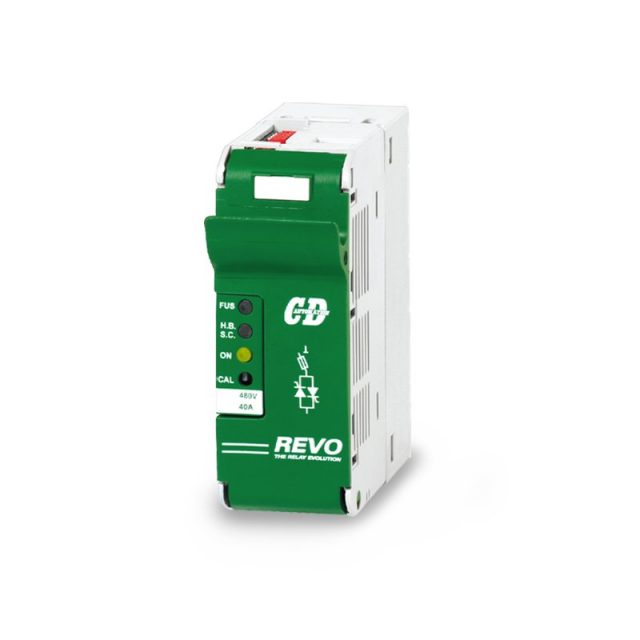

Analogue Input Solid State Relay
- REVO SSR Analogue Solid State Relay is suitable for resistive and medium or long wave infrared loads
- Current range depend by the heatsink and ambient temperature. The rating included in the code number is the theoretical range of the junction, to understand the max current allowed you need to calculate it on this graph.
- An Heatsink is necessary for the correct work of the units, CDAutomation offer a wide range of heatsink to allow you to customize your unit.
- Supply voltage up to 480V or 600V AC as option
- Integrated Fuse and Fuse Holder as a standard.
- Fully isolated from the power
- Burst Firing (4, 8 or 16 cycles selectable)
- 4-20mA or 0-10V DC Linear input as an option
- Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
- IP20 protection
- Complies with CE and cUL (pending)
- Heatsink are sold separately and are not included with this ordering code.
Manuals
English
| Name | Size | Date |
|---|
| ENG REVO-SSR-IFH-Solid-State-relay |
913.3 KiB 5 September 2018 |
| ENG REVO-SSR-Solid-State-relay |
458.1 KiB 5 September 2018 |
Italiano
| Name | Size | Date |
|---|
| ITA REVO-SSR-IFH-Solid-State-relay |
840.6 KiB 14 November 2018 |
| ITA REVO-SSR-Solid-State-relay |
389.9 KiB 5 September 2018 |
Deutsch
| Name | Size | Date |
|---|
| GER L M CD REVO SSR IFH Manuelle REVO SSR | Analogeingang mit Sicherung und Sicherungshalter (Deutsch Version) |
973.6 KiB 17 July 2015 |
Datasheet
Size & Dimensions
-

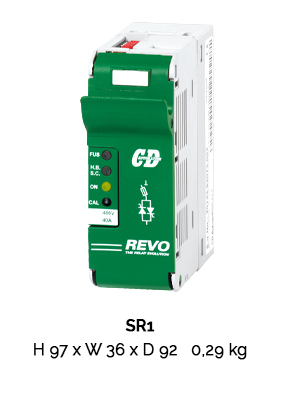

- Size SR1 – H 97 x W 36 x D 92 – 0.29 Kg. Current Range 30A
REVO TU Flat Cable Wiring System
- Terminal Unit for Simplificated wiring of Heater Break Option
- Available for REVO SSR up to 40A and Revo SSR
- Push Button and DI for HB tuning
