- Range: 0:62; 0:7; 0:90
- Max. voltage 480V or 600V AC as option
- Load type: Resistance
- Inputs: SSR Std, 0:10V, 4:20mA and Heather Break alarm are options
- Firing mode: Zero Crossing
General Details

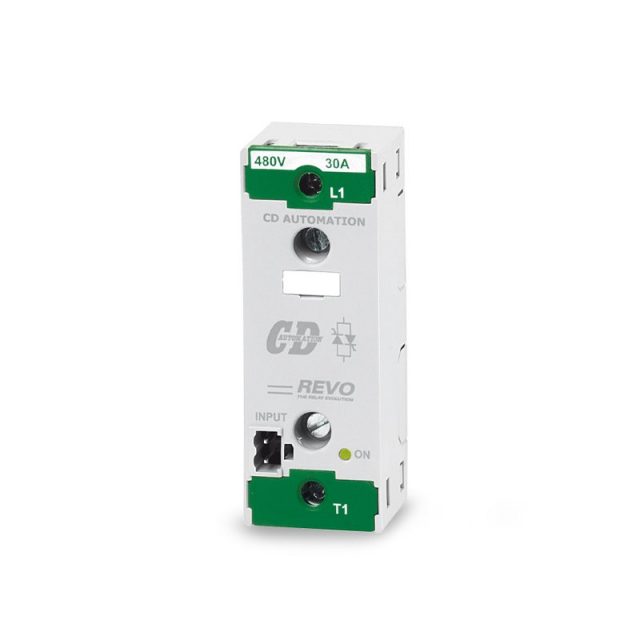

REVO SSR Long Life Solid State Relay
- REVO SSR Solid State Relay is suitable for resistive loads
- Current range depend by the heatsink and ambient temperature. The rating included in the code number is the teoretical range of the junction, to understand the max current allowed you need to calculate it on this graph.
- Supply voltage up to 480V or 600V AC as option
- Fully isolated from the power
- Zero crossing firing mode (ZC).
- Logic input signal 4 to 30V DC typical (SSR).
- Constant current drain, independent of supply voltage with SSR input
- Integrated Fuse and Fuse Holder with SR1 Size.
- Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option with SR1 size only.
- IP20 protection
- Complies with CE and cUL (pending).
- An Heatsink is necessary for the correct work of the units, CDAutomation offer a wide range of heatsink to allow you to customize your unit.
- Heatsink are sold separately and are not included with this ordering code.
Manuals
English
| Name | Size | Date |
|---|
| ENG REVO-SSR-IFH-Solid-State-relay |
913.3 KiB 5 September 2018 |
| ENG REVO-SSR-Solid-State-relay |
458.1 KiB 5 September 2018 |
Italiano
| Name | Size | Date |
|---|
| ITA REVO-SSR-IFH-Solid-State-relay |
840.6 KiB 14 November 2018 |
| ITA REVO-SSR-Solid-State-relay |
389.9 KiB 5 September 2018 |
Deutsch
| Name | Size | Date |
|---|
| GER L M CD REVO SSR IFH Manuelle REVO SSR | Analogeingang mit Sicherung und Sicherungshalter (Deutsch Version) |
973.6 KiB 17 July 2015 |

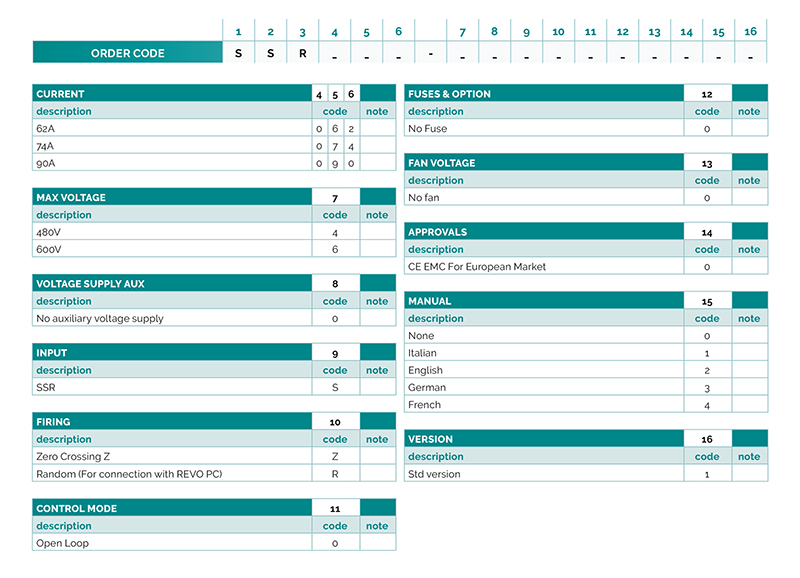

Datasheet
Size & Dimensions
-

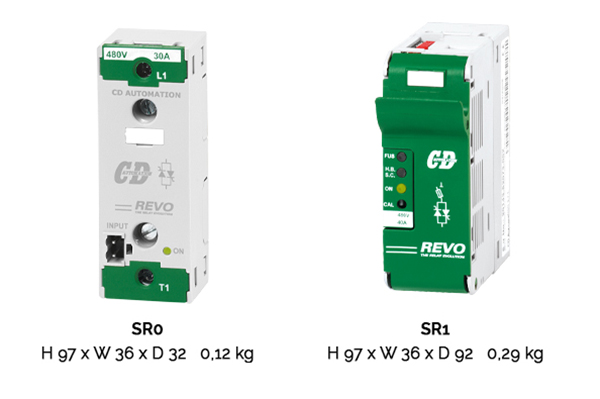

- Size SR0 – H 97 x W 36 x D 32 – 0.12 Kg. Current Range 30A
-
- Size SR1 – H 97 x W 36 x D 92 – 0.29 Kg. Current Range 30A
REVO PC Reduce Power Peaks and Maximise your Savings
- Suitable for Normal Resistance and IR Lamp
- To be used with REVO S and REVO Sx
- Firing Mode: SC, HC and Dynamic Burst Firing
- Reduce Peak of Power and let you save Energy
- Modbus RTU, Profibus, Profinet, Modbus TCP, Ethernet IP and other fieldbus
- Heather Break Alarm
REVO TU Flat Cable Wiring System
- Terminal Unit for Simplificated wiring of Heater Break Option
- Available for REVO SSR up to 40A and Revo SSR
- Push Button and DI for HB tuning
