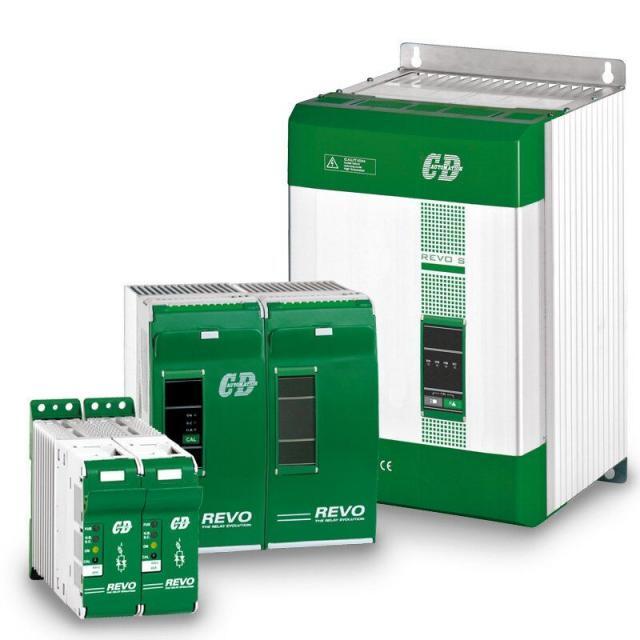

REVO S 2PH


  • From 30 up to 800A
  • Voltage range 480V, 600V and 690V
  • Load type: Resistance, IR Lamp long and medium waveform
  • Inputs: SSR Std, 0:10V, 4:20mA and Heather Break alarm are options
  • Firing mode: Zero Crossing, Burst Firing available with analogue input only

General Details



REVO S 2PH

Three phases static relay

  • REVO S 2PH is a three phases static relay suitable for driving loads with star connection without neutral or delta, on two phases. The unit has been designed to save space and work.
  • Current range – 30A, 35A, 40A, 60A, 75A, 90A, 120A, 150A, 180A, 210A, 300A, 400A, 450A, 500A, 600A, 700A, 800A
  • Voltage range 480V, 600V and 690V (starting from 60A)
  • Fully isolated from the power
  • Zero crossing firing mode (ZC) or Burst Firing (4, 8 or 16 cycles selectable)
  • Logic input signal 4 to 30Vdc typical (SSR) plus 4-20mA or 0-10Vdc Linear input as an option
  • Constant current drain, independent of supply voltage with SSR input
  • Heater Break (HB) alarm to diagnose partial or total load failure with automatic setting, relay alarm output and front LED indication. Available as an option
  • Side by side mounting
  • Special design Heatsink with high dissipation value
  • IP20 protection
  • Complies with EMC, EAC, cULus® 508 Listed and cUL® listed up to 700A as an option. UL® listed for 800A as an option.
Code / Size

REVO S 2PH – Order Code


REVO S 2PH – Size & Dimensions
